Medical Needles
MEDICON manufactures a wide range of reusable puncture and injection needles produced from high-grade medical stainless steel.
The needles feature precision manufacturing, multi-faceted sharpening, excellent resistance to repeated thermal sterilization and long service life.
The product range includes needles for spinal, pleural and epidural procedures, subclavian vein catheterization, blood transfusion, as well as specialized adapters.

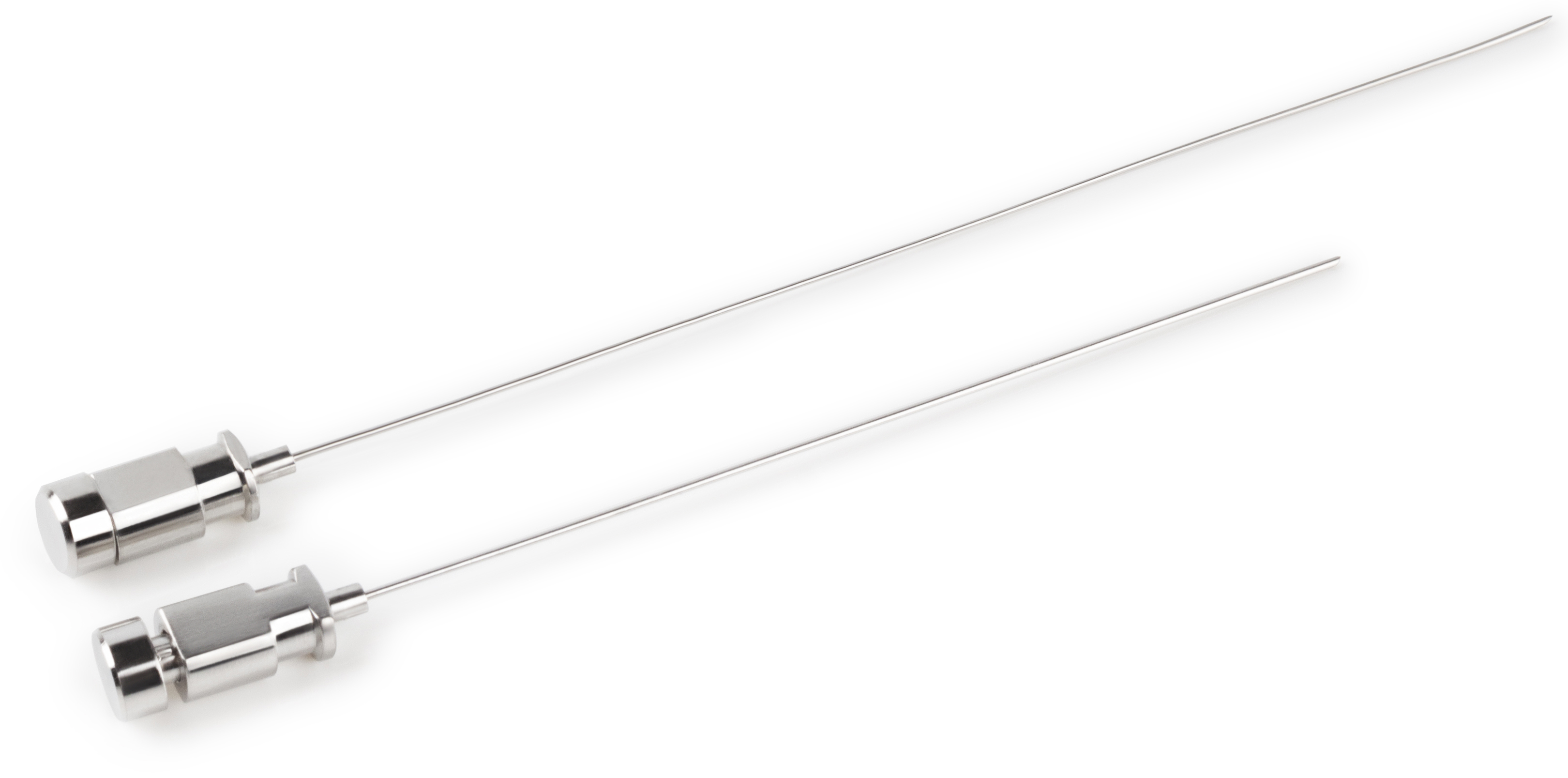

Spinal Puncture Needle
Application
Designed for collecting cerebrospinal fluid or administering medications into the spinal canal.
Specifications
- ✓ Length: 90 / 120 mm
- ✓ Diameter: 0.8 mm (21G)
- ✓ Luer hub
- ✓ Bevel angle: 25°

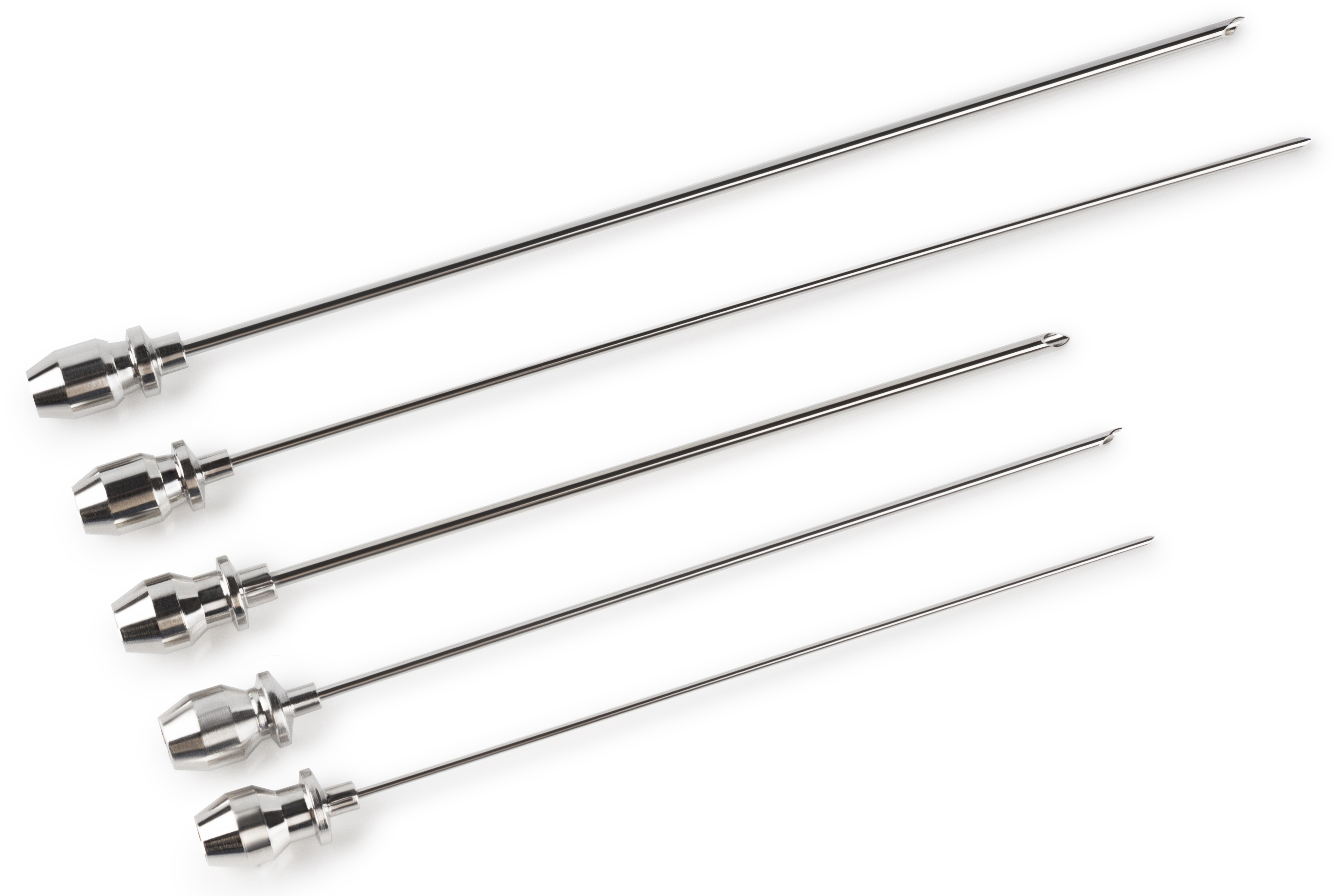

Pleural Puncture Needle
Application
Intended for aspiration of pleural fluid, diagnostic procedures, fluid evacuation and subsequent administration of medications.
Specifications
- ✓ Length: 86 mm
- ✓ Internal diameter: 0.6 / 1.0 / 1.4 mm
- ✓ Sizes: 19G / 17G / 15G
- ✓ Luer hub

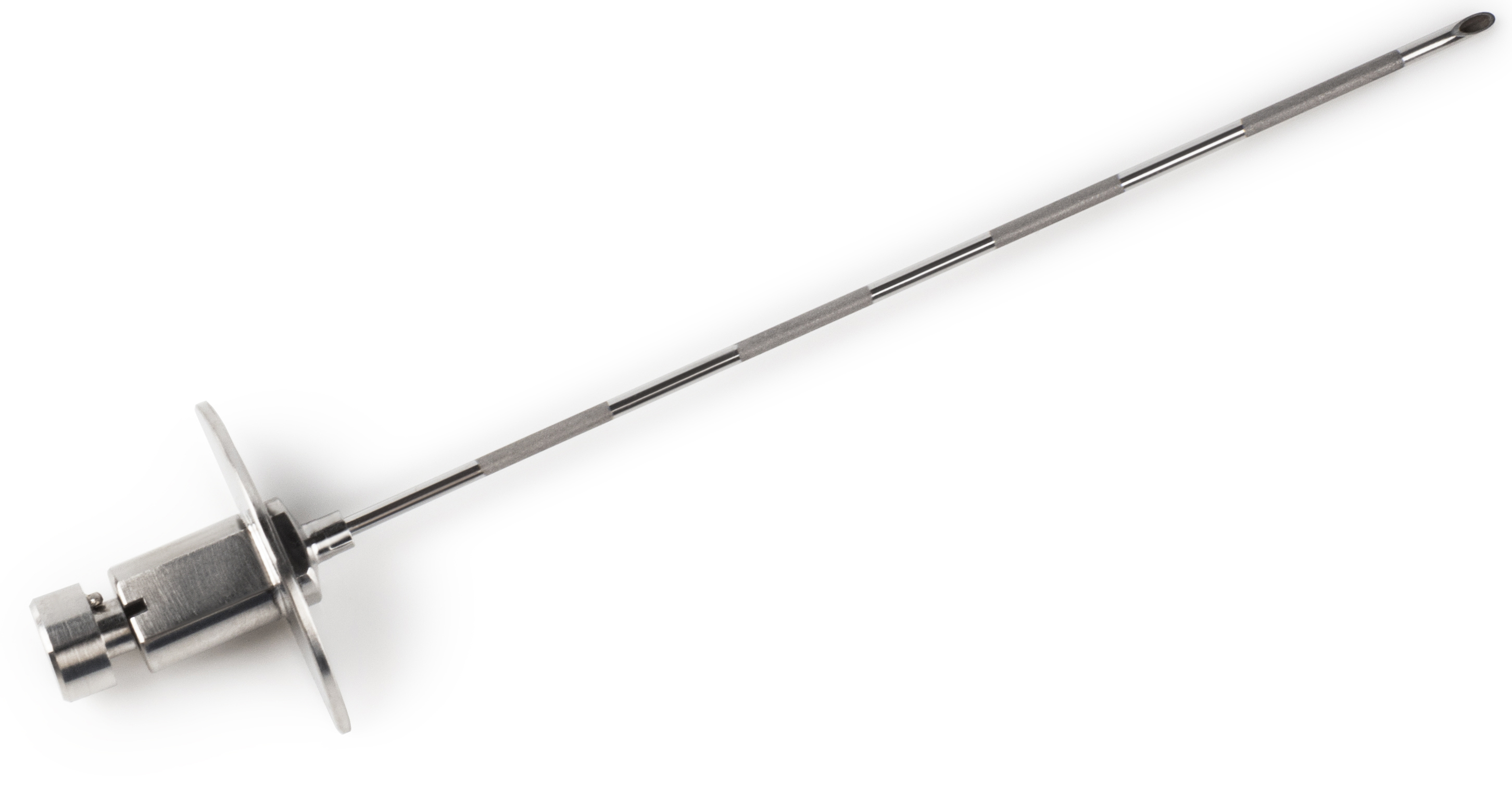

Epidural Needle
Application
Designed for administration of anesthetic agents into the epidural space directly or through a catheter.
Specifications
- ✓ Stylet and insertion stop
- ✓ Depth markings
- ✓ Length: 90 mm
- ✓ Diameter: 1.5 mm (17G)
- ✓ Luer hub

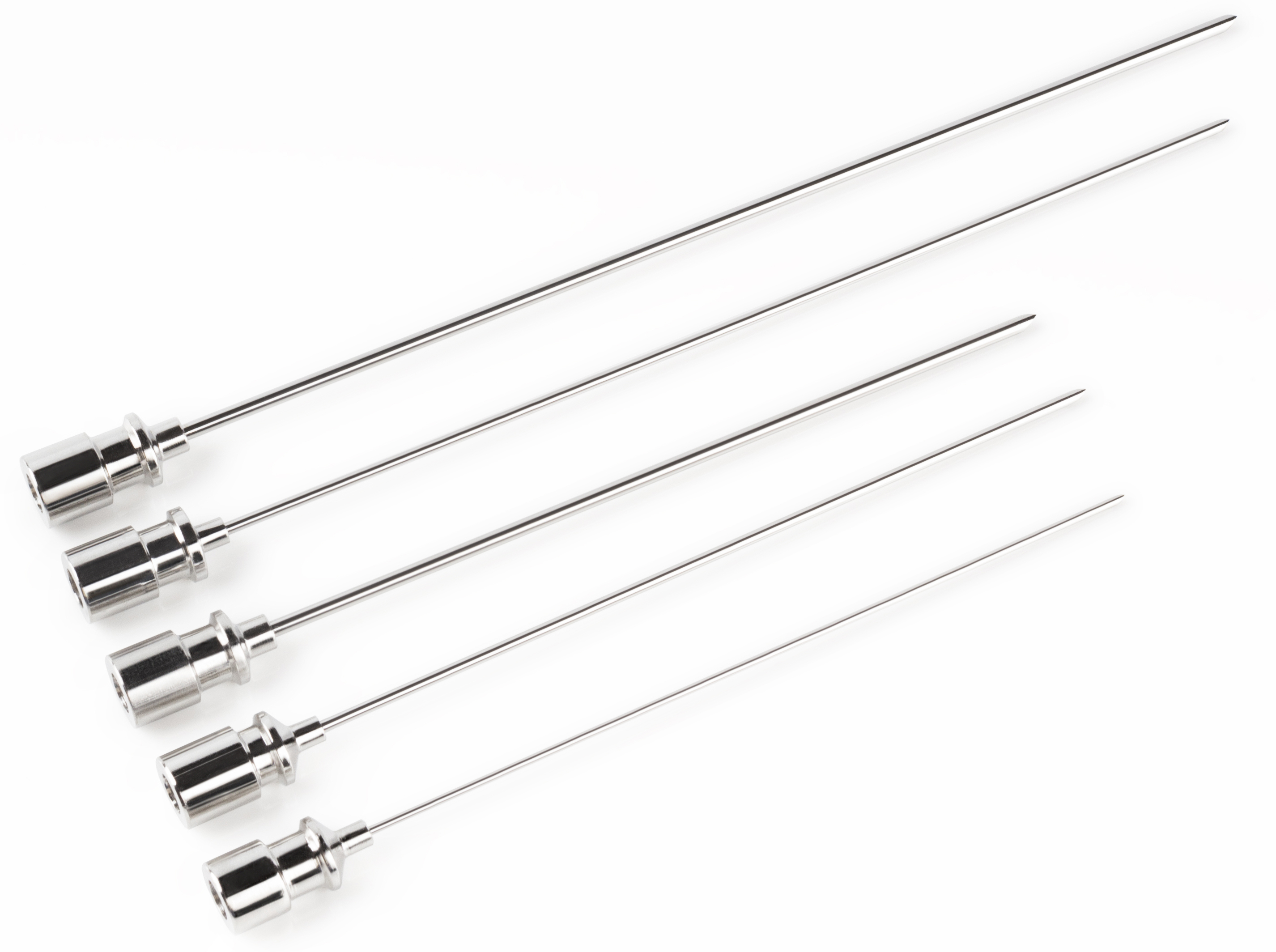

Subclavian Vein Needle
Application
Designed for catheter insertion into the subclavian vein.
Specifications
- ✓ Diameters: 1.0 / 1.4 / 1.8 mm
- ✓ Sizes: 19G / 17G / 15G
- ✓ Lengths: 66 / 86 / 120 mm
- ✓ Luer hub

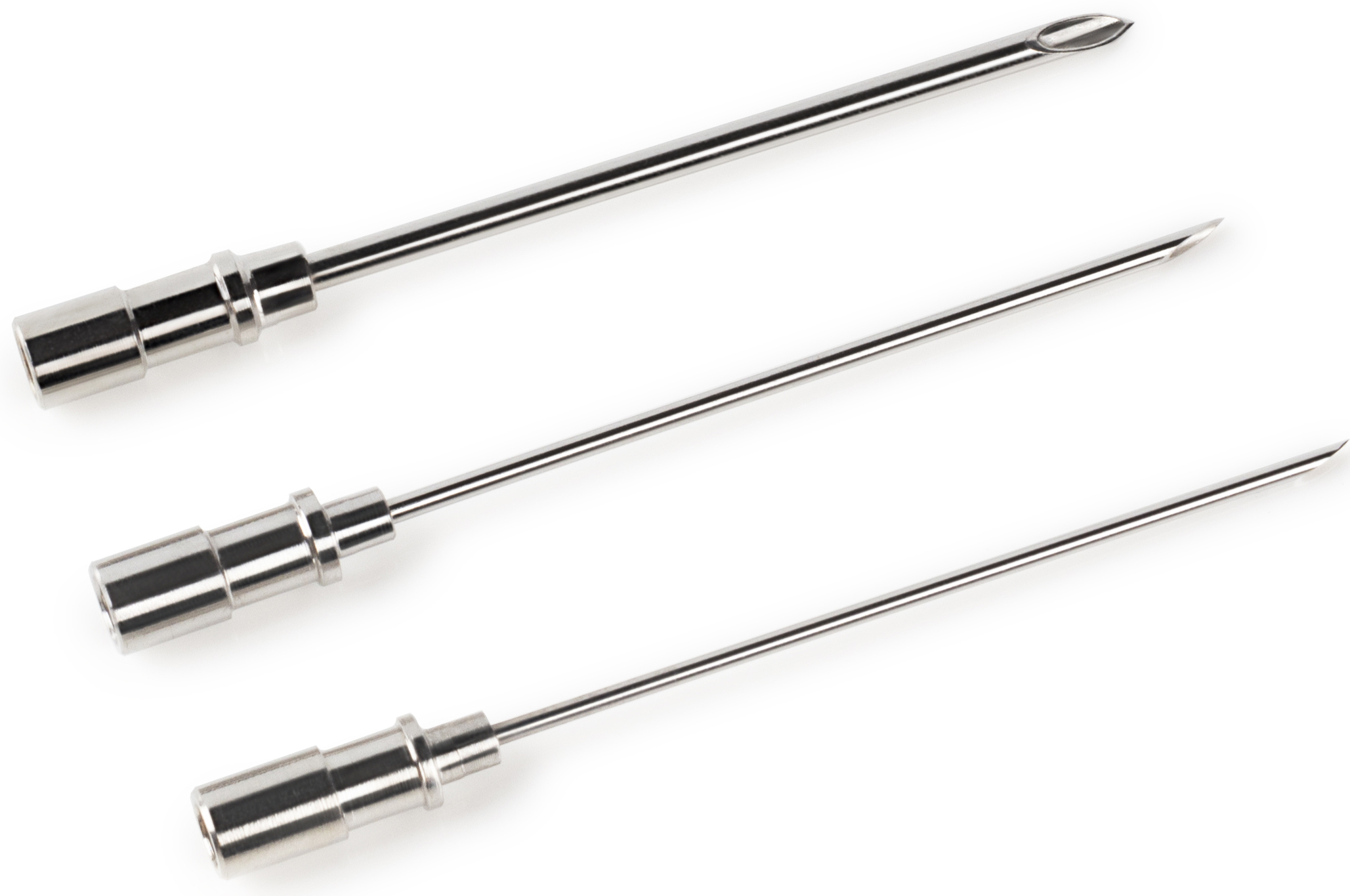

Dufo Needle
Application
Intended for venous blood collection.
Specifications
- ✓ Length: 45 mm
- ✓ Diameters: 1.1 / 1.4 / 1.8 mm
- ✓ Sizes: 19G / 17G / 15G
- ✓ Record hub

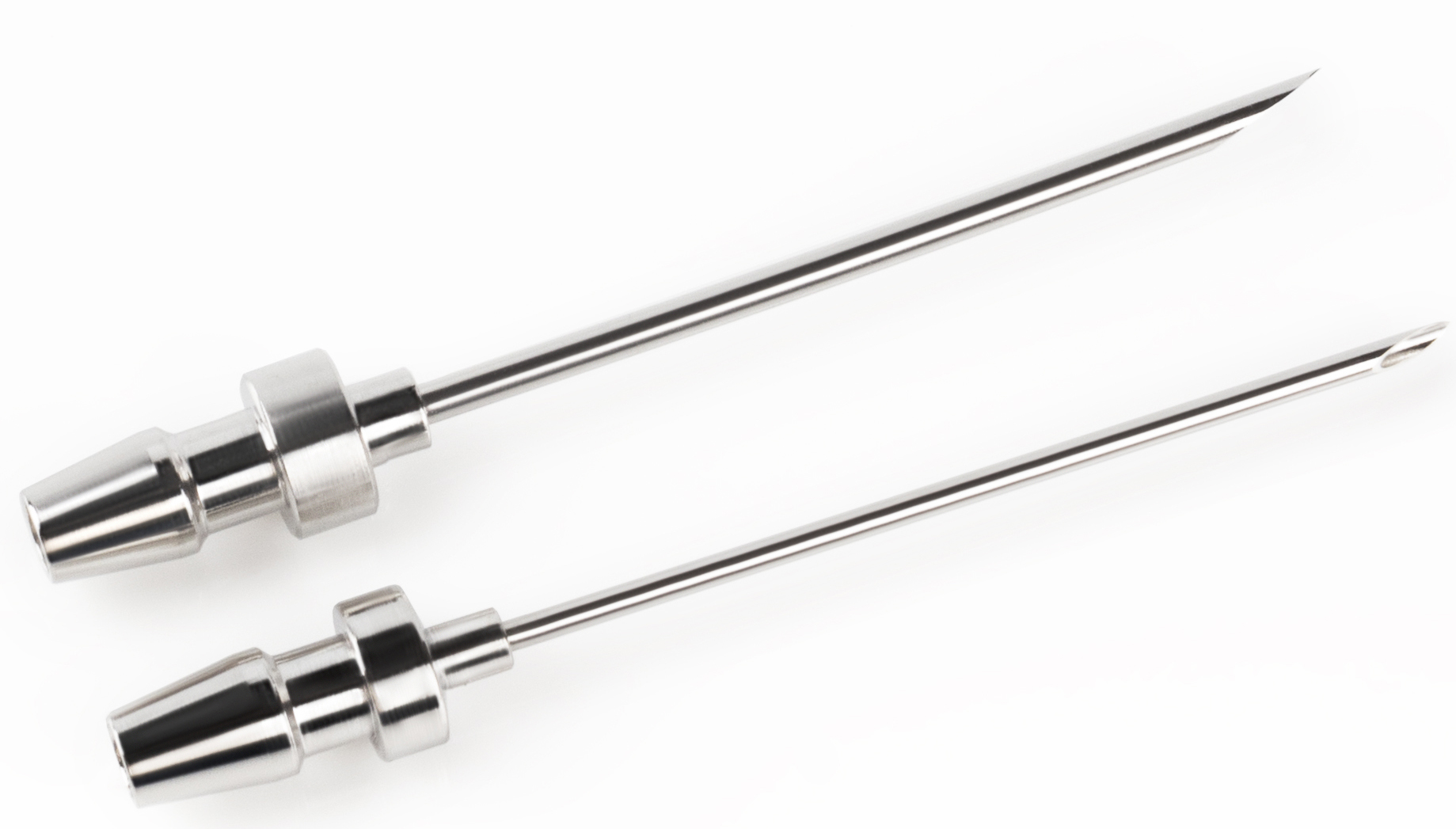

Blood Transfusion Needle
Application
Designed for blood transfusion procedures.
Specifications
- ✓ Length: 45 mm
- ✓ Diameters: 1.5 / 2.0 mm
- ✓ Sizes: 17G / 14G
- ✓ Record hub
Adapters

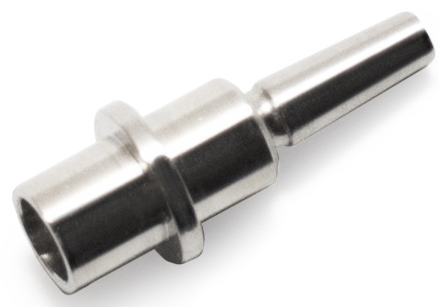

Luer → Record
Adapter for connecting Record syringes to Luer needles.

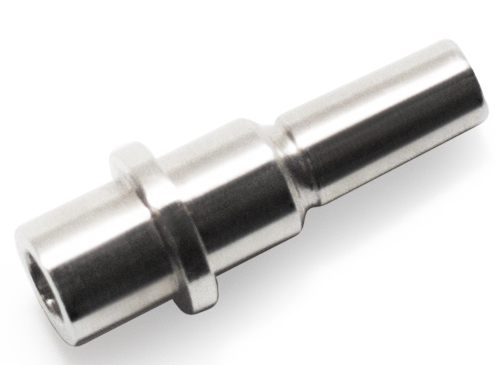

Record → Luer
Adapter for connecting Luer syringes to Record needles.

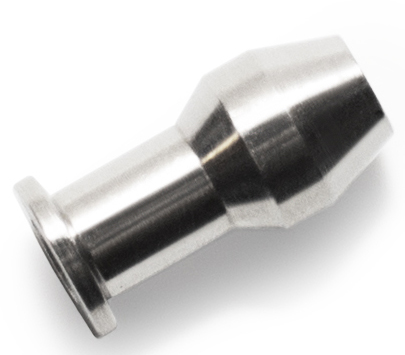

Pleural Adapter
Adapter for connecting pleural tubing with Luer syringes.
